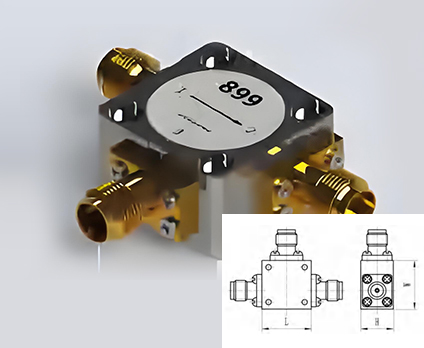

Coaxial Circulator
|
Service Frequency (GHz) |
Tape Width (MHz) |
Loss (dB) MAX |
Isolation (dB) MIN |
Standing Wave MAX |
Model Series |
Pass through Power/reflectance (W) |
Outline Dimension (mm) |
Working Temp ℃ |
Linkage Way |
|
0.86~1.2 |
100 |
0.25 |
20 |
1.2 |
BKHHT1404-** |
100 |
25.4*25.4*10 |
-55~85 |
SMA |
|
1.0~2.7 |
100 |
0.2 |
20 |
1.2 |
100 |
25.4*25.4*10 |
-55~85 |
SMA |
|
|
200 |
0.25 |
20 |
1.2 |
100 |
25.4*25.4*10 |
-55~85 |
SMA |
||
|
300 |
0.3 |
20 |
1.2 |
100 |
25.4*25.4*10 |
-55~85 |
SMA |
||
|
1.8~2.5 |
100 |
0.25 |
20 |
1.2 |
BKHHT1306-** |
100 |
19*19*10 |
-55~85 |
SMA |
|
200 |
0.3 |
20 |
1.2 |
100 |
19*19*10 |
-55~85 |
SMA |
||
|
2.3~3.5 |
100 |
0.2 |
20 |
1.2 |
100 |
19*19*10 |
-55~85 |
SMA |
|
|
200 |
0.25 |
20 |
1.2 |
100 |
19*19*10 |
-55~85 |
SMA |
||
|
300 |
0.3 |
20 |
1.25 |
100 |
19*19*10 |
-55~85 |
SMA |
||
|
500 |
0.5 |
20 |
1.3 |
100 |
19*19*10 |
-55~85 |
SMA |
||
|
2.2~2.5 |
100 |
0.3 |
20 |
1.2 |
BKHHT1281-** |
100 |
15*15*9.5 |
-55~85 |
SMA |
|
2.4~5.0 |
200 |
0.25 |
20 |
1.2 |
100 |
15*15*9.5 |
-55~85 |
SMA |
|
|
300 |
0.3 |
20 |
1.25 |
100 |
15*15*9.5 |
-55~85 |
SMA |
|
service frequency (GHz) |
tape width (MHz) |
Loss (dB) MAX |
Isolation (dB) MIN |
standing wave MAX |
model series |
pass through Power/reflectance (W) |
Shape size L*W*H (mm) |
working temperature (℃) |
linkage way |
|
5.0~8.0 |
500 |
0.4 |
20 |
1.25 |
BKHHT1243-** |
40 |
15*15*10 |
-40~70 |
SMA |
|
8.0~12.0 |
300 |
0.25 |
23 |
1.2 |
30 |
15*15*10 |
40~70 |
SMA |
|
|
500 |
0.3 |
21 |
1.2 |
30 |
15*15*10 |
-40~70 |
SMA |
||
|
1000 |
0.4 |
20 |
1.25 |
30 |
15*15*10 |
40~70 |
SMA |
||
|
2000 |
0.5 |
18 |
1.3 |
30 |
15*15*10 |
-40~70 |
SMA |
||
|
8.0~12.0 |
Full |
0.6 |
15 |
1.4 |
BKHHT1490-** |
25 |
12.7*12.7*9.5 |
40~70 |
SMA |
|
12.0~18.0 |
500 |
0.3 |
22 |
1.15 |
BKHHT1101-** |
10 |
11*15.5*9 |
-40~70 |
SMA |
|
1000 |
0.4 |
21 |
1.2 |
10 |
11*15.5*9 |
-40~70 |
SMA |
||
|
2000 |
0.5 |
20 |
1.25 |
10 |
11*15.5*9 |
-40~70 |
SMA |
||
|
18.0~26.0 |
500 |
0.8 |
22 |
1.2 |
BKHHT1102-** |
5 |
10*14.5*11 |
-40~70 |
SMA |
|
1000 |
0.9 |
20 |
1.2 |
5 |
10*14.5*11 |
40~70 |
SMA |
||
|
2000 |
1.0 |
18 |
1.3 |
5 |
10*14.5*11 |
-40~70 |
SMA |
||
|
0.8~2.0 |
FULL |
1.3 |
12 |
1.6 |
BKHHT1499-** |
100 |
72*72*27.4 |
10~70 |
N |
|
2.0~6.0 |
FULL |
1.0 |
11 |
1.7 |
BKHHT1457-** |
50 |
30.5*30.5*15 |
10~70 |
SMA |
|
6.0~18.0 |
FULL |
1.5 |
10 |
1.8 |
BKHHT1501-** |
20 |
19*20.3*14 |
-30~70 |
SMA |
Note: The above index data are typical values, and the test temperature is room temperature (25℃).
-
