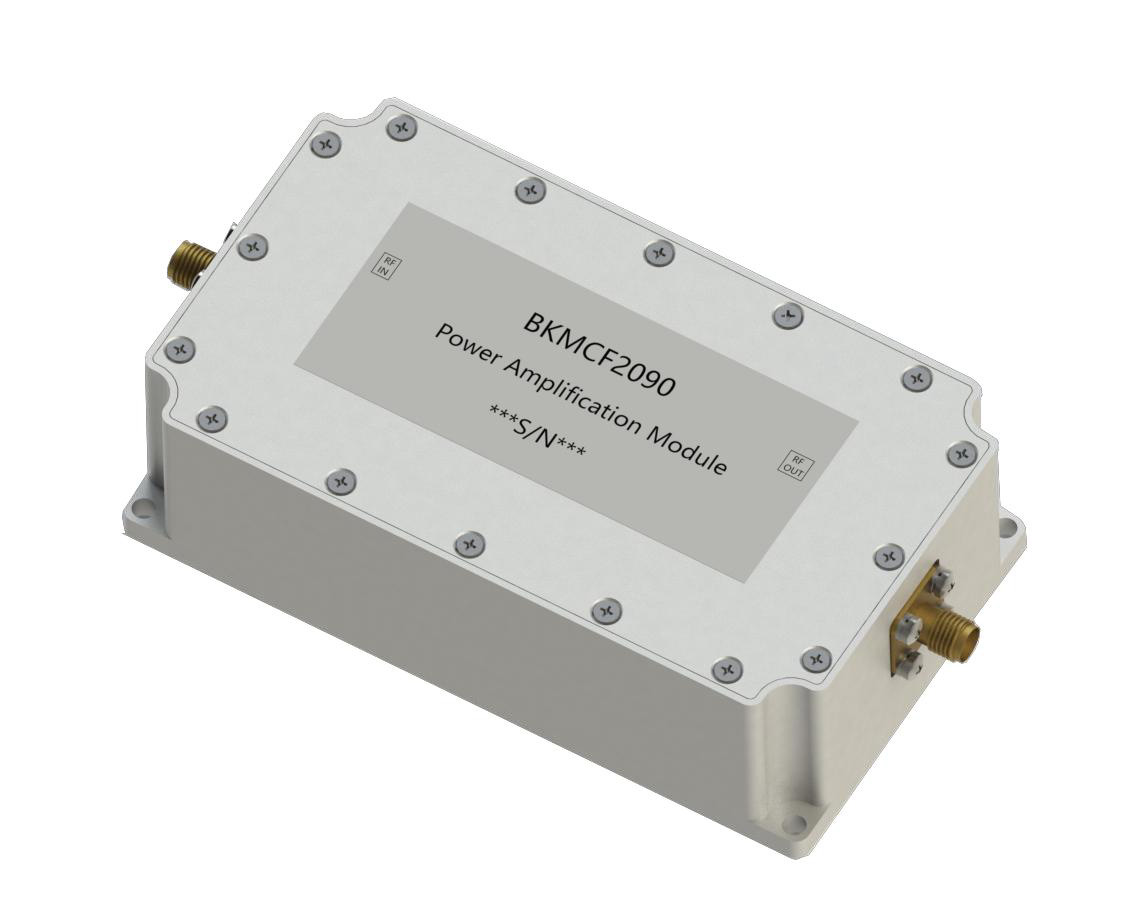

Power Amplification Module (High Power)

Power Amplification Module (High Power)

  • The power amplification module is a key device used in systems such as radio, radar, satellite communication, and medical equipment to amplify low-power RF signals into high-power outputs.

    Functional Features

    ◇ Compact size, using standard interfaces for easy installation.
    ◇ High output power, effectiveness thermal conductivity, coupled with air or water cooling, good heat dissipation effect.
    ◇ Scalable frequency.



Project

Require

Frequency

2400~2484MHz
5150~5250MHz
5725~5875MHz
5000~6000MHz

(The special frequency range can be customized)

Gain

≥8dB

Flatness

≤±1.5dB

Maximum Output Power

≥50Bm

VSWR (Output)

≤1.4

Connection Method

SMA

Power Supply

28V/10A

Operation Temperature

-20~55℃
