Name: S-band mechanical-electrically tuned duplexer
Brand: AetherNex
SKU: AetherNex-T675-10
Availability: InStock
Rating: 5 (29 reviews)

S-band mechanical-electrically tuned duplexer

Frequency tuning range: 5600-5900 MHz

Frequency step: 1 MHz

Loss: <2.5 dB

Withstand power: greater than 20W

Adjustment time: <10s

Functional Features

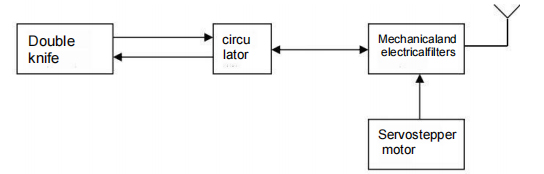

Schematic diagram:
