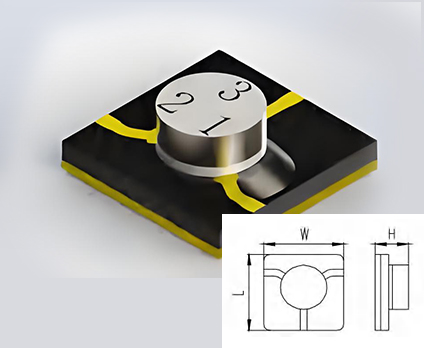

Microband circulator
|
service frequency (GHz) |
tape width (MHz) |
Loss (dB) MAX |
Isolation (dB) MIN |
standing wave MAX |
model Series |
pass through Power/reflectance (W) |
Shape size L*W*H (mm) |
working temperature ℃) |
linkage way |
|
1.8~2.5 |
100 |
0.4 |
20 |
1.25 |
BKHHW1326-** |
30 |
16*16*6.5 |
-40~70 |
Silkbonding |
|
200 |
0.5 |
18 |
1.25 |
30 |
16*16*6.5 |
-40~70 |
Silkbonding |
||
|
2.0~3.5 |
100 |
0.4 |
20 |
1.2 |
BKHHW1259-** |
20 |
14*14*5.5 |
-40~70 |
Silkbonding |
|
200 |
0.5 |
20 |
1.2 |
20 |
14*14*5.5 |
-40~70 |
Silkbonding |
||
|
2.7~3.5 |
300 |
0.4 |
20 |
1.25 |
20 |
14*14*5.5 |
40~70 |
Silkbonding |
|
|
FULL |
0.5 |
18 |
1.3 |
20 |
14*14*5.5 |
-40~70 |
Silkbonding |
||
|
3.0~5.0 |
200 |
0.4 |
20 |
1.2 |
BKHHW1327-** |
20 |
12*12*5 |
-55~85 |
Silkbonding |
|
300 |
0.5 |
20 |
1.2 |
20 |
12*12*5 |
-55~85 |
Silkbonding |
||
|
4.0~6.0 |
300 |
0.4 |
20 |
1.25 |
20 |
12*12*5 |
-55~85 |
Silkbonding |
|
|
500 |
0.5 |
18 |
1.3 |
20 |
12*12*5 |
-55~85 |
Silkbonding |
||
|
4.0~7.0 |
500 |
0.4 |
20 |
1.2 |
BKHHW1276-** |
10 |
9.5*9.5*4.5 |
-55~85 |
Silkbonding |
|
1000 |
0.5 |
20 |
1.2 |
10 |
9.5*9.5*4.5 |
-55~85 |
Silkbonding |
||
|
8.0~12.0 |
1000 |
0.4 |
20 |
1.2 |
10 |
9.5*9.5*4.5 |
-55~85 |
Silkbonding |
|
|
FULL |
0.5 |
20 |
1.3 |
10 |
9.5*9.5*4.5 |
-55~85 |
Silkbonding |
|
service frequency (GHz) |
tape width (MHz) |
Loss (dB) MAX |
Isolation (dB) MIN |
standing wave MAX |
model series |
pass through Power/reflectance (W) |
Shape size L*W*H (mm) |
working temperature ℃) |
linkage way |
|
5.0~8.0 |
500 |
0.4 |
20 |
1 2 |
BKHHW1333-** |
10 |
8*8*4 |
-55~85 |
Silk bonding |
|
1000 |
0.5 |
20 |
1 2 |
10 |
8*8*4 |
-55~85 |
Silk bonding |
||
|
8.0~12.0 |
1000 |
0.4 |
20 |
1 2 |
10 |
8*8*4 |
-55~85 |
Silk bonding |
|
|
FULL |
0.5 |
20 |
1.3 |
10 |
8*8*4 |
-55~85 |
Silk bonding |
||
|
7.0~18.0 |
1000 |
0.4 |
20 |
1 2 |
BKHHW1257-** |
5/1 |
6*6*3.5 |
-55~85 |
Silk bonding |
|
2000 |
0.5 |
20 |
1 2 |
5/1 |
6*6*3.5 |
-55~85 |
Silk bonding |
||
|
4000 |
0.5 |
18 |
1.3 |
5/1 |
6*6*3.5 |
-55~85 |
Silk bonding |
||
|
15.0~36.0 |
1000 |
0.6 |
20 |
1.3 |
BKHHW1308-** |
5/1 |
5*6/5*3.5 |
-55~85 |
Silk bonding |
|
2000 |
0.8 |
18 |
1.4 |
5/1 |
5*6/5*3.5 |
-55~85 |
Silk bonding |
||
|
4000 |
1.2 |
14 |
1.5 |
5/1 |
5*6/5*3.5 |
-55~85 |
Silk bonding |
||
|
26.0~38.0 |
500 |
0.8 |
18 |
1.3 |
BKHHW1354-** |
5 |
4*4*3 |
-55~85 |
Silk bonding |
|
1000 |
1 |
16 |
1.4 |
5 |
4*4*3 |
-55~85 |
Silk bonding |
||
|
2000 |
1.2 |
16 |
1.4 |
5 |
4*4*3 |
-55~85 |
Silk bonding |
||
|
5.0~6.0 |
FULL |
0.5 |
20 |
1.25 |
BKHHW1257-** |
5 |
5.5*6*3 |
-55~85 |
Silk bonding |
|
8.0~12.0 |
FULL |
0.5 |
17 |
1.3 |
BKHHW1354-** |
5 |
4*4*3 |
-55~85 |
Silk bonding |
|
22.0~26.0 |
FULL |
0.5 |
20 |
1.25 |
BKHHW1366-** |
5 |
3*3*3 |
-55~85 |
Silk bonding |
Note: The above index data are typical values, and the test temperature is room temperature (25℃)
-
